5ply Double Pieces Box Forming Folder Gluer Machine

  • Shun Stick Folder Gluer

  • Automatic Folder Gluer

  • Electric

  • Film

  • a-E Corrugated and Less Than 6mm Corrugated Board

  • 0-3000PCS/H

  • Servo Feeding

  • Single Piece and Double Pieces Both Available

  • 1200*1200

  • 500*450

  • Standard Box and Irregular Box Both Available

  • Hot Melt Glue

  • Can Be Set Separately

  • French Schneider, Taiwan Tiande

  • Taiwan Delta

  • England Fkg

  • Plastic Film, Container.

  • 2400


  • Cangzhou City, Hebei Province

  • 8441809000

  • 5sets/Monthv

  • Available | Customized Request

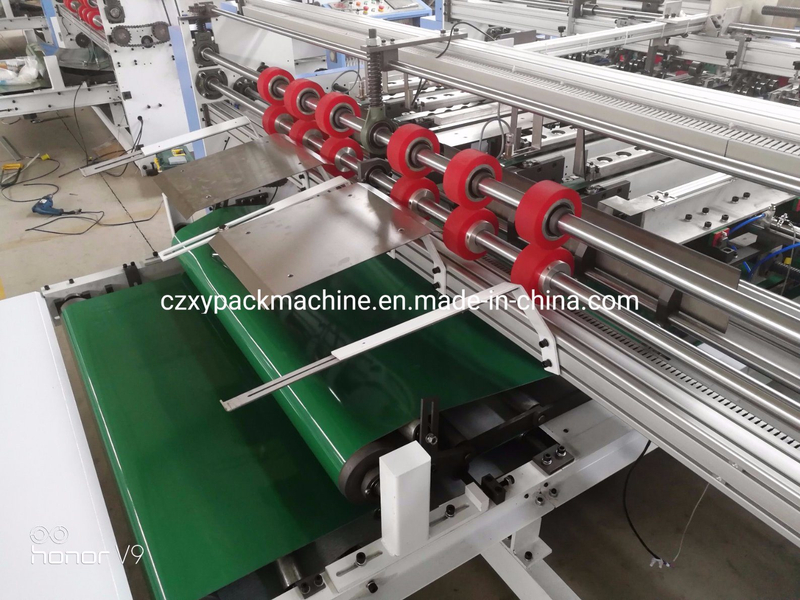

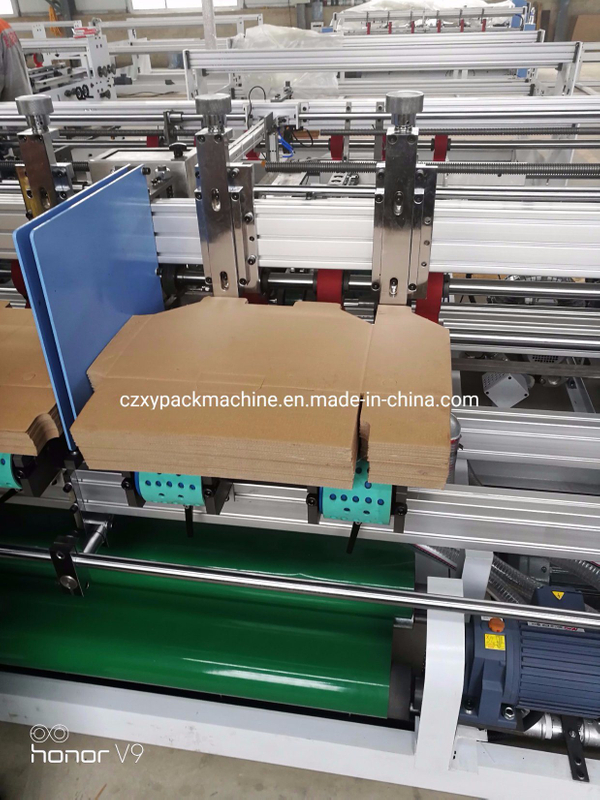

5ply double pieces box forming folder gluer machine

5ply Double Pieces Box Forming Folder Gluer Machine
5ply Double Pieces Box Forming Folder Gluer Machine
5ply Double Pieces Box Forming Folder Gluer Machine

I.Main technical features
HX-2400B series semi automatic double paste box machine is our company accoeding to the change of market demand at domestic and abroad, a comprehensive analysis of similar products at home and abroad, and on the basis of research on manufacturing and production process in-depth, developed a new "festival," excellent performance "," double paste box machine.
This machine adopts double servo feeding, ensure that the equipment in the stability of high speed paper feeding and high-speed feed synchronization, and servo feed can make A,B piece set feeding size individually , so as to solve the problem of size.
Double gluing is used for gluing, respectively hot melt adhesive and ordinary sealant, which ensures the 100% bonding of the product into the container and cold storage.
The double servo positioning is also used in the two piece butt joint, which provides the same consistency for low speed bonding and high speed bonding of the machine.
This machine can be used as a flat box and a special shaped box, the front positioning of our company's original, the use of dual-use specifications, shorten the time for the machine to change order .
The machine is a dual function machine, both the double box and the single box can be produced. It is only 2 minutes to complete the conversion from double box to single box.

II.Machine parameters and configuration list
1,Machine parameters
Feeding size: Max 1200*1200 Min 500*450
Applicable paper range: A-E corrugated and less than 6mm corrugated board
Design speed: 0-3000pcs/h
Dimensions(L*W*H) 6940*4200*1310(Vertical compression)
4060*3200*1310(Horizontal pressing)
Heating power: 2KW
Total power: 9KW

2,configuration list
HX-2400B folder gluer
Components and parts brand
Button French schneider
Contactor French schneider,Taiwan Tiande
Servo motor Beijing Zhongchuang
Main frequency converter Taiwan Delta
PLC Taiwan Delta
Touch screen Taiwan Delta
Photoelectricity Taiwan Delta,
Key position bearing England FKG
Main motor Shanghai Saini
Reducer Taiwan Chengbang(CPg)
Micromotor Xiamen Jingyan(Sino German joint venture)
Suction belt Swiss Rui Baolong
Press belt German siegling
Transportation belt German siegling
cylinder Taiwan AirTAC

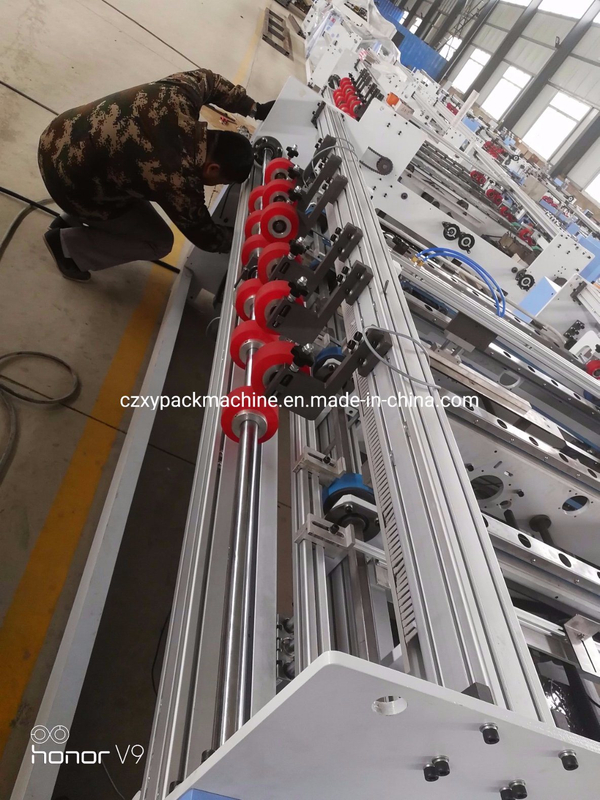

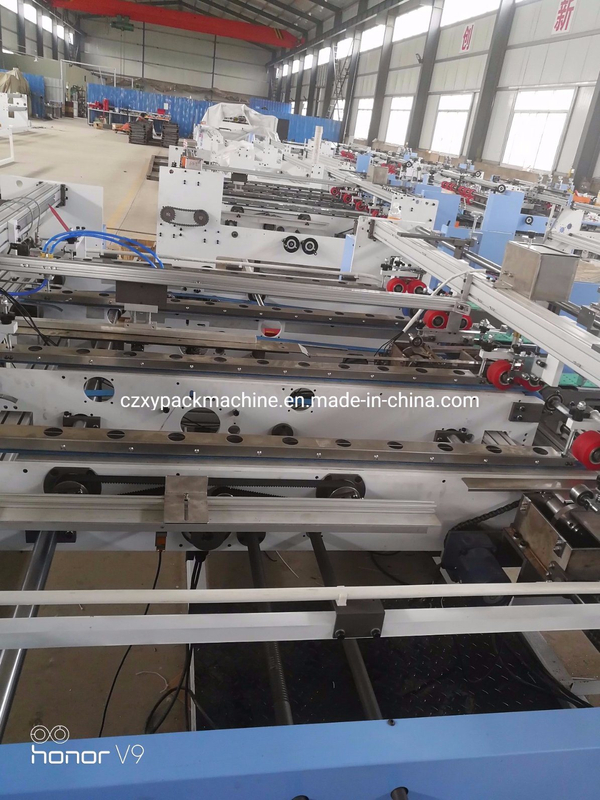

Machine manufacturing process:

5ply Double Pieces Box Forming Folder Gluer Machine

Box Producing Process:

5ply Double Pieces Box Forming Folder Gluer Machine

Customer Visit:

5ply Double Pieces Box Forming Folder Gluer Machine

Related Products:

5ply Double Pieces Box Forming Folder Gluer Machine

Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
