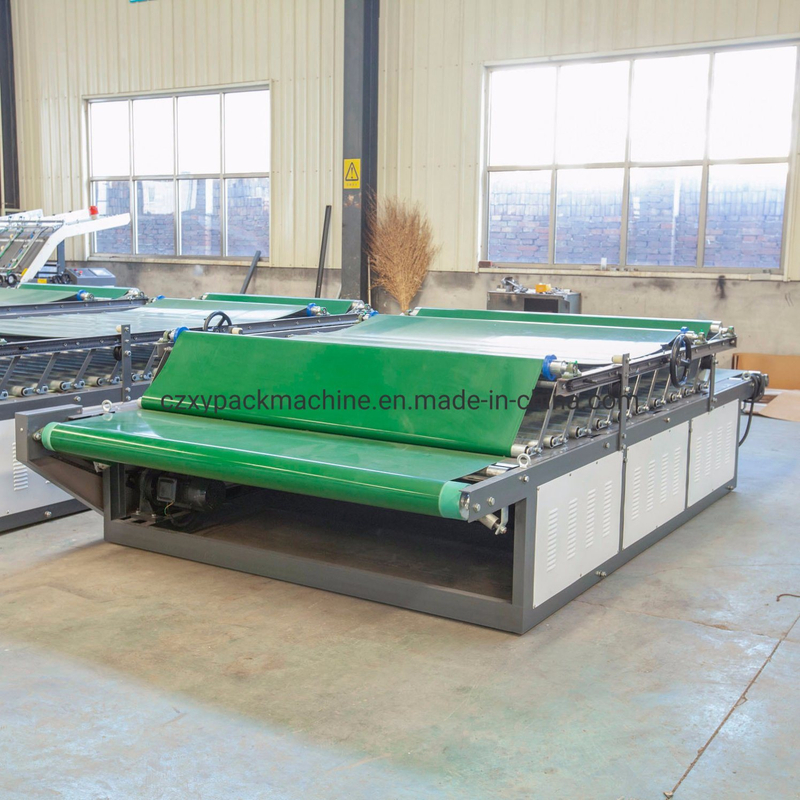

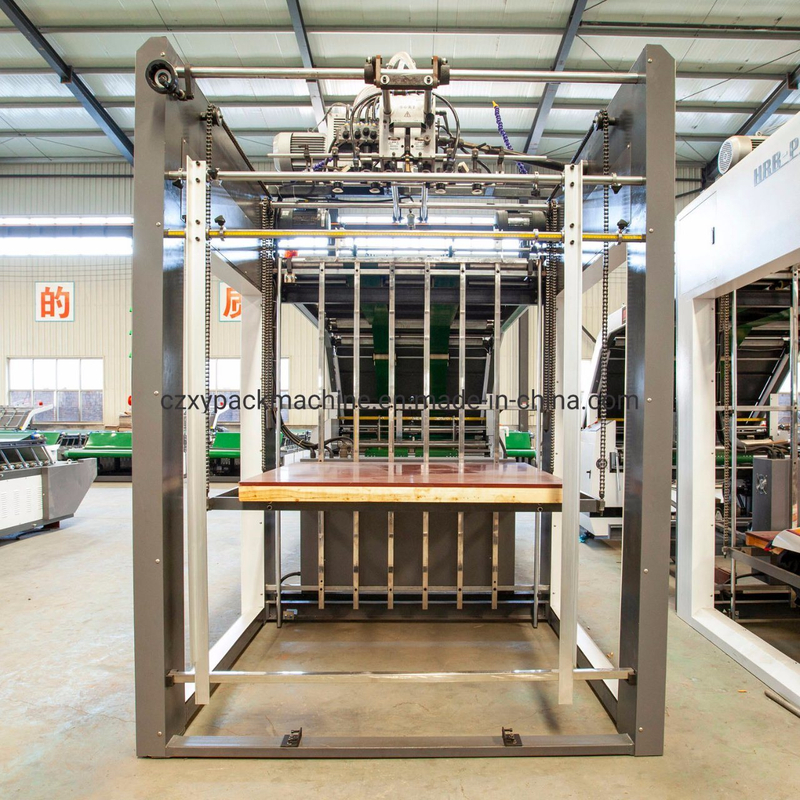

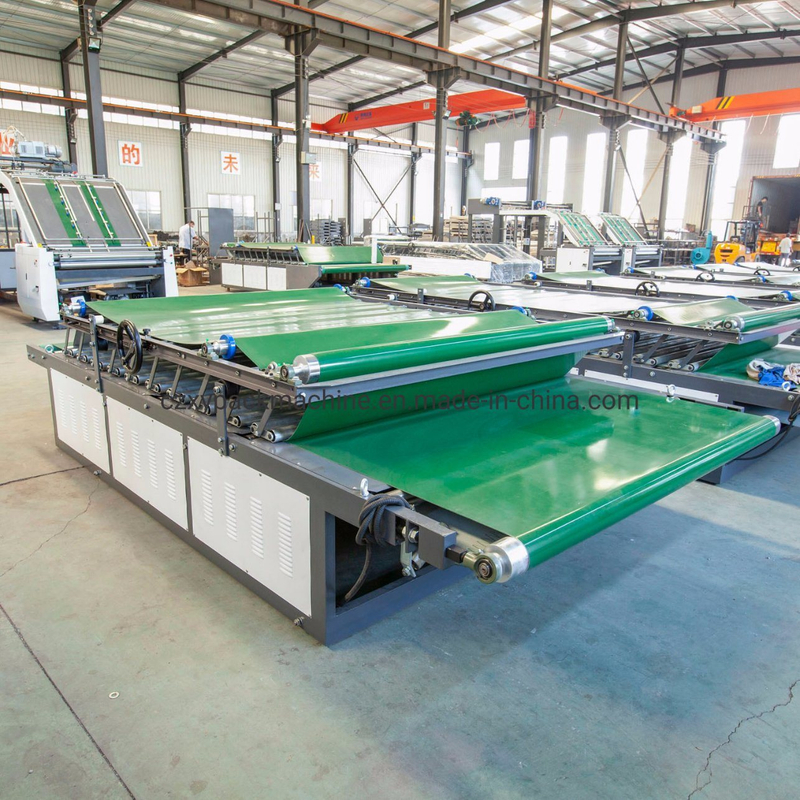

3ply Corrugated Colorful Box Flute Laminating Machine

Quantity:
  • ISO9001, CE
  • Commodity, Machinery & Hardware, Food
  • Electric
  • Engineers Available to Service Machinery Overseas
  • Automatic Carton Making Machine
  • Automatic
  • Colorful Box Making
  • 8000PCS/H
  • 1300/1500/1600
  • Vacuum Suction-Type
  • Touch-Screen/PLC/Servo Motor Control System
  • 1300X1200mm
  • 400X400
  • 1.5mm
  • 10kw
  • Delta
  • Automatic Gluing
  • Standard Plastic Packing for Abroad
  • 6ton
  • CZXY
  • Hebei, China
  • 8441809000
  • 10sets/Month
  • Available | Customized Request
3ply corrugated colorful box flute laminating machine
3ply Corrugated Colorful Box Flute Laminating Machine
3ply Corrugated Colorful Box Flute Laminating Machine


Major feature:
  1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
  2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
  3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
  4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
  5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
  6. Roller design scientifically, avoid glue fly out when the speed is high.
  7. Pressure rollers adopt one side adjustment, convenient and fast.
  8. Rocker controls wash roller's fluctuation, easy cleaning.
9. Counter designs scientifically, easy recording the amount you have been worked.


Technological parameter:
Model CZXY-1300A CZXY-1500A
Max size of cover face
1300X1200mm 1500X1200mm
Mix size of cover face
400mmX400mm 400mmX400mm
Economic speed
0-120 piece/min 0-120 piece/min
Precision
±1.5MM ±1.5MM
Power
10kw 10kw
Size
10m x 2m x 2.4m 10m x 2.2m x 2.4m
Weight
About 5.5T About 6.0T

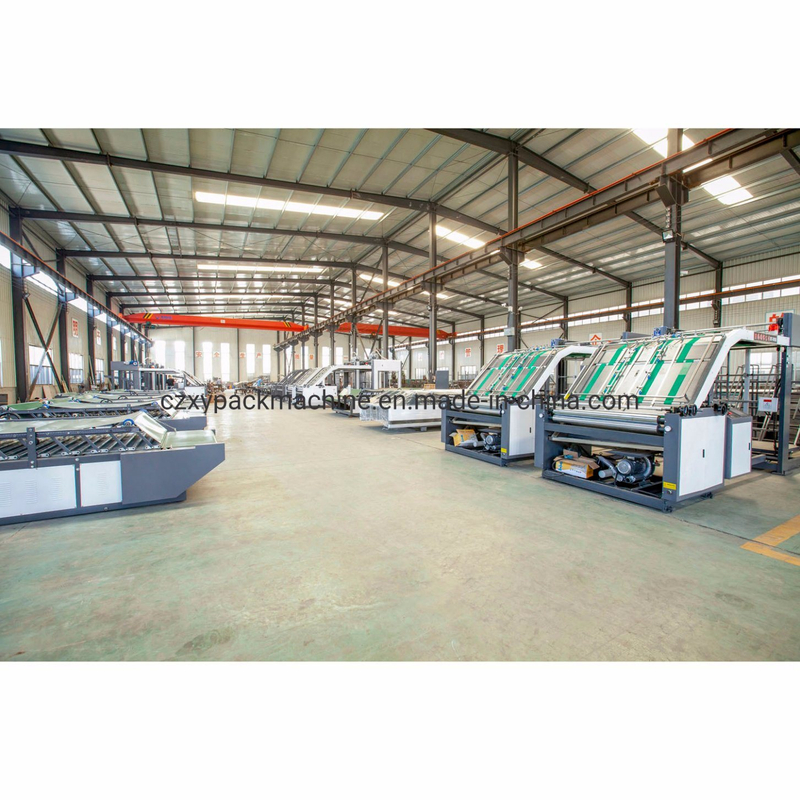

Factory Workshop:
3ply Corrugated Colorful Box Flute Laminating Machine

Customer Visit:
3ply Corrugated Colorful Box Flute Laminating Machine


Related Products:
3ply Corrugated Colorful Box Flute Laminating Machine

Delivery Picture:
3ply Corrugated Colorful Box Flute Laminating Machine

Welcome to visit us, we'd glad to be good friends with you!
