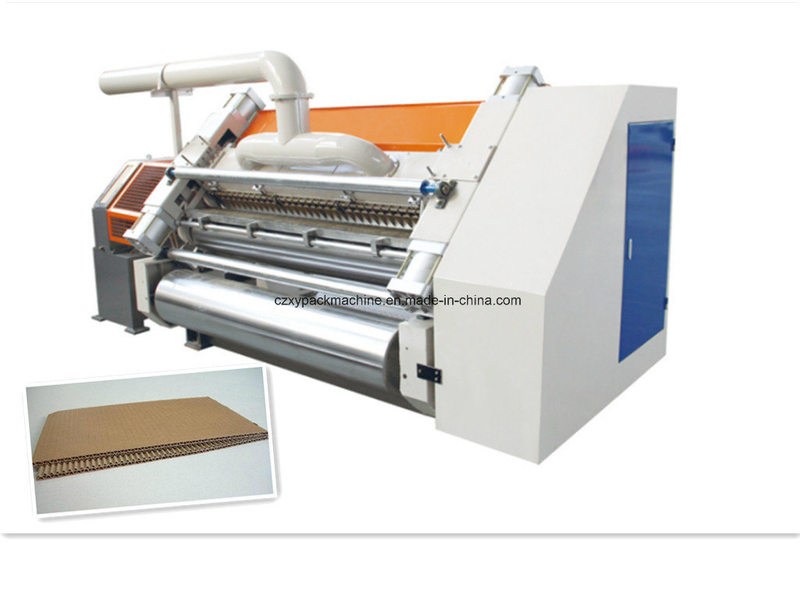

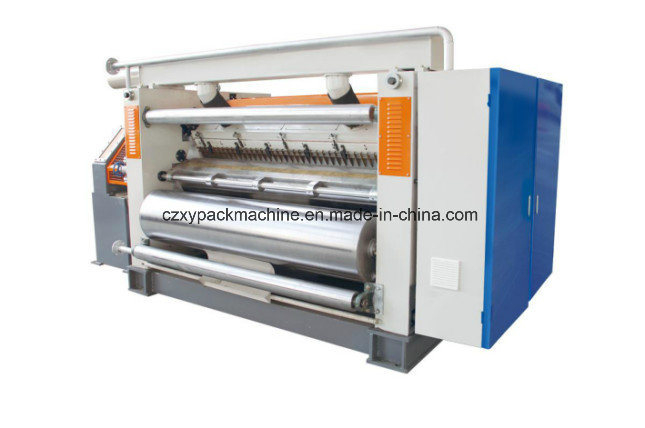

Single Facer Machinery, Carton Box Making Machine, Paperboard Making Machine

Share to:

Single Facer Machinery, Carton Box Making Machine, Paperboard Making Machine

Quantity:



Inquire Add to Basket

Condition:
New
Certification:
CE
Automation:
Automatic
Suitable for:
Paper
Paper Thickness:
Thick Paper
Heating System:
Steam Heating/ Electric Heating
Model NO.:
CZXY-280S
Effective Width:
1400mm-2500mm
Layer:
3/5/7 Optional
Design Speed:
120m/Min
Working Speed:
60-100m/Min
Single Facer Type:
Vacuum Absorbable
Flute Type:
Acbe as Customer Requirements
Corrugated Roller Diameter:
280
Electric Appliance:
Imported Famous Brand
Transport Package:
Plastic Film Wrapping Outside, Container
Specification:
Corrugated type: A, B, C, E Optional
Trademark:
CZXY
Origin:
Cangzhou City, Hebei Province
HS Code:
8441809000
Production Capacity:
3-5sets/Month
Customization:
Available | Customized Request

Product Description

Product Description

Corrugated paper making automatic grade packaging machinery

Glue Rollers:

Diameter	Φ215mm
Processing Way	Surface of glue roller is grinded, then with 25 line rut type net dot,then plating chrome Surface of glue banlance roller is grinded then plating chrome
Control Way	Pneumatic cylinder control of the Lifting Up-down

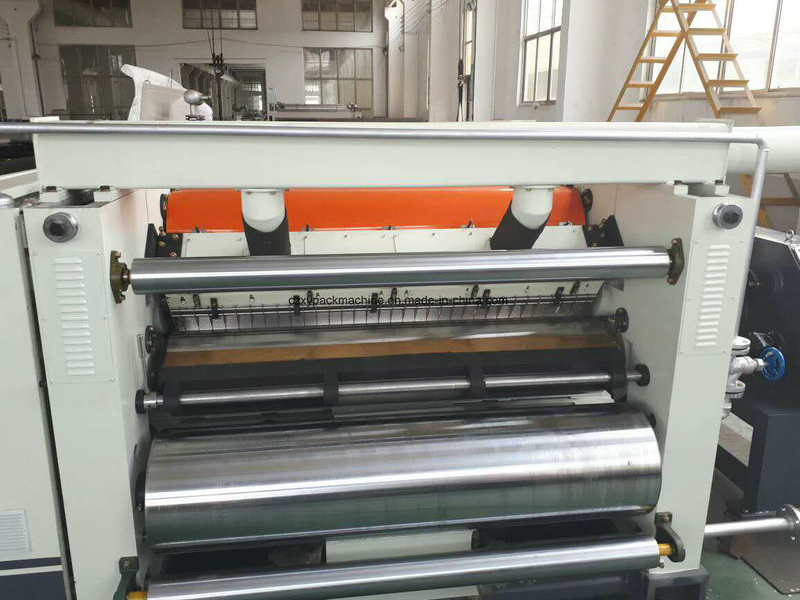

Corrugated Rollers:

Diameter	Φ280mm
Material	48CrMo high quality alloy steel,rigidity HRC60°
Processing Way	Through hardening and tempering→inside hold boring→roller heading connecting→weld→tempering to low the stress→ meticulous turning→rough grinding→mid frequeney induction hardening→Nc meticulous grinding→chrome plating.
Flute Type	(U/V) ACBE as customer's requirements

Press Rollers:

Diameter	Φ284mm
Material	medium steel (MS)45#
Processing Way	The surface is grinded then plating chrome, hardening and tempering(With Buffer)
Control Way	Penumatic cylinder control of the Lifting Up-down

Preheater Rollers:

Diameter	Φ320mm
Material	seamless steel tube
All connected by flexible metallic tubes

Transmission

About gear

Close style gear transmission oiliness lubricated,
long use life of gear

Common Spec :

Machinery Speed	KnightΦ280:100 m/min
Width of Paper	1400mm
Style of Transmit cardboard	Vacuum Cover adsorbable style, Hight pressure Draw fan.with wind control Adjusting & noise deadening device.
Style of Control Roller	Pneumatic control the upper roller, pressure roller and glue roller
Lubrication	Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller's gears
Power	7.5 kw
Pneumatic & Electric control systems are in one operation counter, Distance between main machine no less than 1.5m
Wallboard: cast iron,thickness:130mm

Working width: 1400 mm Operation Direction: Left or right (decided by the workshop of customer)
Temperature: 160-200ºC Air pressure: 0.4-0.9Mpa Steam Pressure: 0.8-1.3Mpa

Spec of Motor :
Draw Fan Motor: 7.5 kw Nominal voltage: 22 0V 6 0Hz Continuous (S1) working Type
Main Motor: 7.5 kw Nominal voltage: 22 0V 6 0Hz Continuous (S1) working Type
Box Producing Process:
Corrugated Paper Making Automatic Grade Packaging Machinery

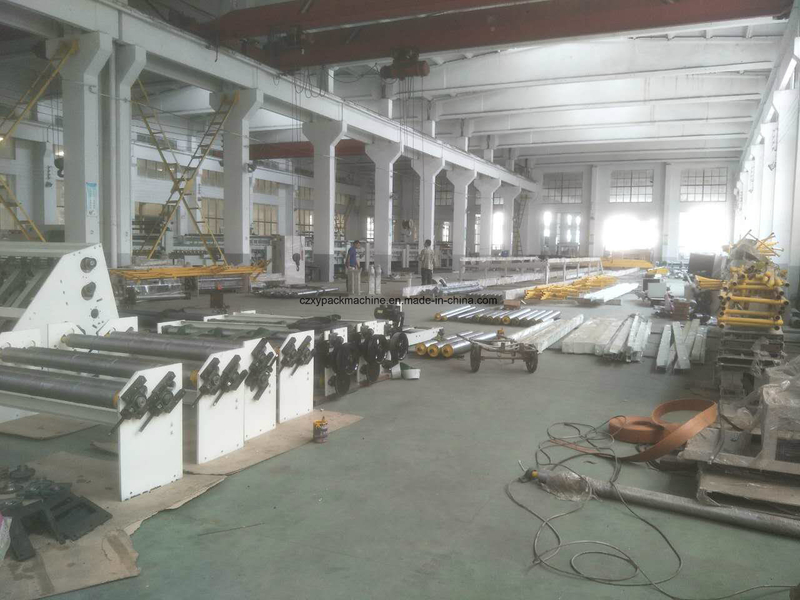

Factory Manufacture Process:
Corrugated Paper Making Automatic Grade Packaging Machinery

Customer Visit:
Corrugated Paper Making Automatic Grade Packaging Machinery

Delivery Pictures:
Corrugated Paper Making Automatic Grade Packaging Machinery

Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
